Features

• Robust design with aesthetically pleasing look

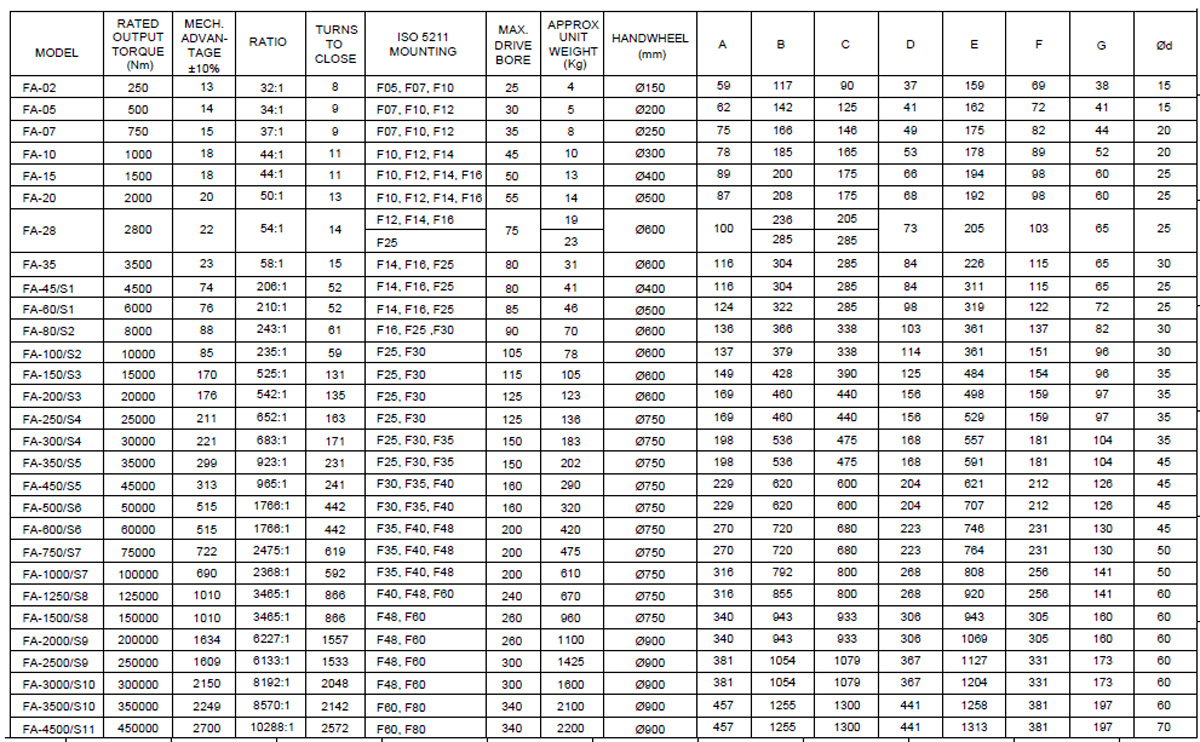

• 29 models up to a Torque of 4,50,000 Nm and F-80 mounting base and max. stem acceptance dia. of 340 mm
• Fully sealed gearbox having a standard Ingress Protection rating of IP-68
• Rugged Ductile iron (DI) body and Alloy steel hardened integral worm-shaft for longer life and extreme temperature applications
• High Performance thrust and radial bearings for best-in-class efficiency
• Higher Mechanical Advantage for easy operation
• Stroke 0-90^o (+/- 5^o adjustment)
• Epoxy Primer Coating is standard, Finish painting is available on request
• Powder coated Hand wheels for smooth and easy operation
• Worm + Spur, Worm + Bevel, Worm + spur + bevel configurations available to reduce rim pull / input effort and also for 'top operating' requirement

Options :

• Housing material extra options (Carbon Steel / Stainless Steel)
• Worm shaft, Fasteners and Hand wheel option available in SS316
• Worm wheel material – Al. Bronze
• High Temperature Variant up to +200^o C
• Low Temperature Variant up to -60^o C
• Variant for Marine Application available
• Top Operation available for space constraints
• Twin shaft option available for reduced operating time for manual operation
